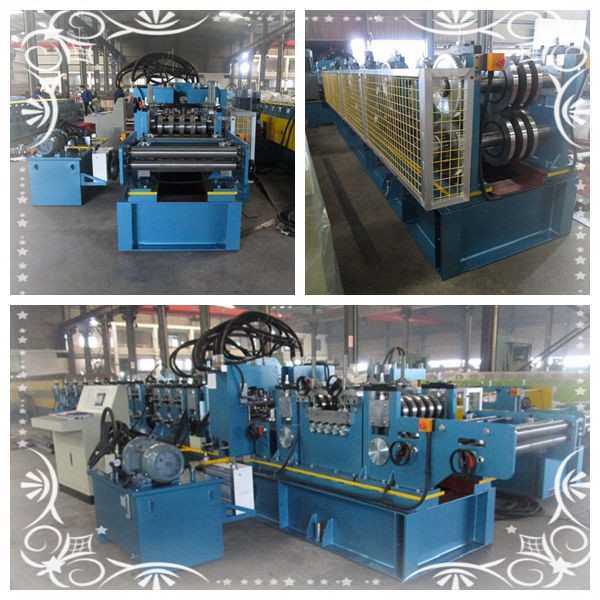

全自動Z/C型檁條機 金屬壓型設備/成型設備

 檁條軋機是一套軋輥可生產多種規格C型檁條成品的單卷成型機組。該機主要由被動裝料架、裝料架底座、整平裝置、沖孔裝置、成型前切斷裝置、成型主機、液壓站、電腦控制柜等幾部分組成。
　  經該機輥軋的C型檁條成品具有良好的抗彎抗壓性能，平直度好、全自動定長切割，自動沖孔、自動化程度高，安裝快捷方便。 產品可作為大中型工業民用建筑的主體受力結構，如廠房、 倉庫、機車庫、飛機庫、展覽館、影劇院、體育場館、集市花棚的屋面承重荷載和墻面支撐。

技術方案

1適合的材料：冷軋鋼帶和熱處理鍍鋅鋼帶;
2.原料厚度： 1.5-3.0毫米
3.成型速度：約15-18米/分
4.功率需求

          主要電機功率： 22千瓦（以最后的設計為準）
          液壓站功率： 5.5千瓦（以最后的設計為準）
5.開卷最高承載能力：5000kg（可以增加到10T ）
6.控制系統：三菱PLC和變頻器
7.電壓：380伏3相50赫茲或按客戶要求
8.機器大小：約13000mm? 2200mm?2000mm（以最后的設計為準）

杭州中原機械廠成立于2003年，是一家擁有先進的設計理念和豐富的生產制造經驗的金屬成型機械生產廠家。我們主要生產聚氨酯復合板生產線，金屬板材成型機械。
     我們的R＆D部門的工作人員有10多年的工作經驗，包括在金屬成形機行業的資深工程師，因此，我們能夠幫助客戶提供專業的設計和解決方案。而且，我們有自己的加工中心，配備了數控車床，車床，研磨機，萬圓磨床，重型龍門刨床，等，這些為我們保證機器的質量和交貨期提供了堅實的后盾。如今，我們已經與全球20多個國家和地區客戶建立和貿易關系，如美國，智利，墨西哥，玻利維亞，巴西，厄瓜多爾，哥倫比亞，阿根廷，澳大利亞，敘利亞，格魯吉亞，阿曼，阿聯酋，尼日利亞，阿爾及利亞，尼日爾，印度，等等。我們期待著與您建立友好合作關系。

Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery. We offer a vast range of products, including in sandwich panel forming machine, metal tile forming machine, cladding forming machine, metal decking forming machines,etc.We also can supply steel coils,EPS sandwich panels,PU sandwich panels to suit diverse requirements of our global customers.

At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine,etc,which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines.All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.

At Zhoongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from supplierswhich we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.

Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Australia, Syria, Oman, U.A.E, Nigeria,Algeria, Niger, India, and others. We look forward to cooperating with even more global customers and

invite you to contact us for further information.
